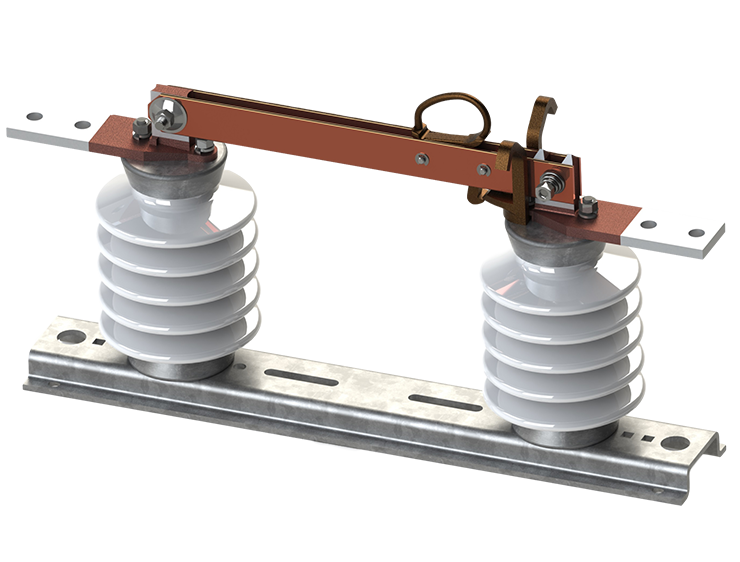

BLT Parallel Blade

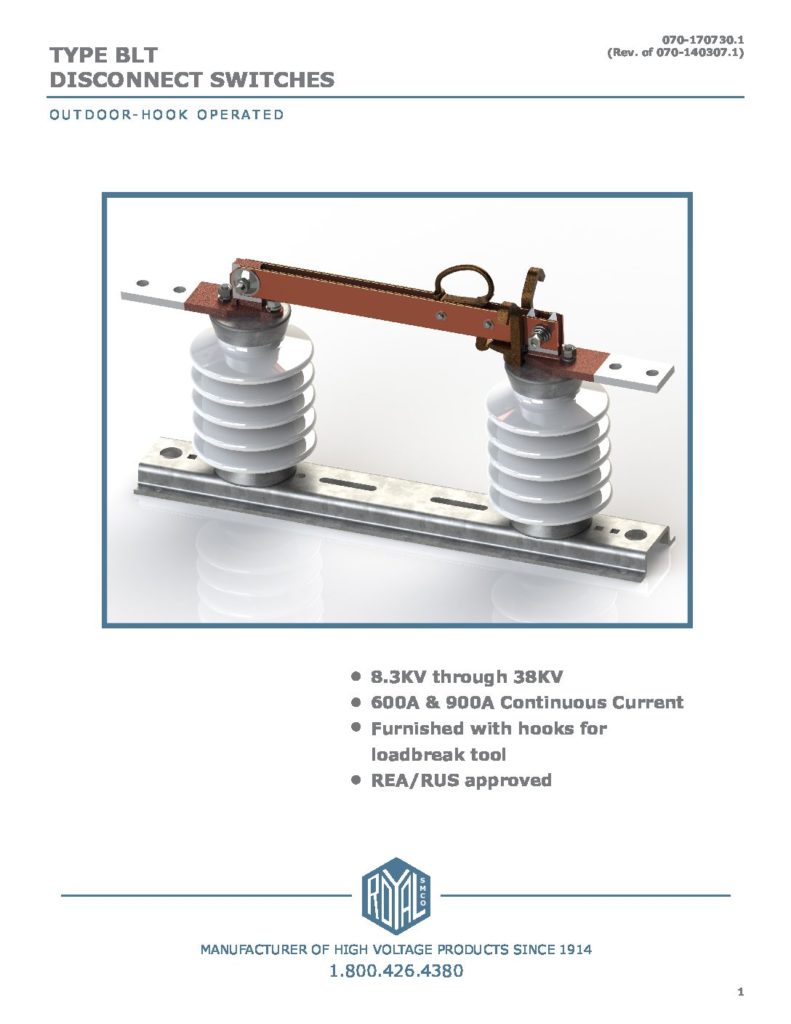

Download Catalog PDF

FEATURES

-8.3KV through 38KV
-600A & 900A Continuous Current
-Furnished with hooks for loadbreak tool
-REA/RUS approved
-Compact design for crossarm or pole top mounting.
-Simple, sure latch mechanism.
-Double-tongue latch contact for extra contact surface.
-Operable with portable loadbreak tool.
-All contacts silver plated.
-All live parts of hard-drawn copper, cast copper, or high-conductivity bronze.
-Extensive terminal options

Category:
Distribution Hookstick Switches
Sub-Category:
Type BLT
Switch Style:
BLT Parallel Blade
Voltage:
7.5 - 34.5kV
Current:
900A
BIL:
110-150kV
Next Product:
Product Image

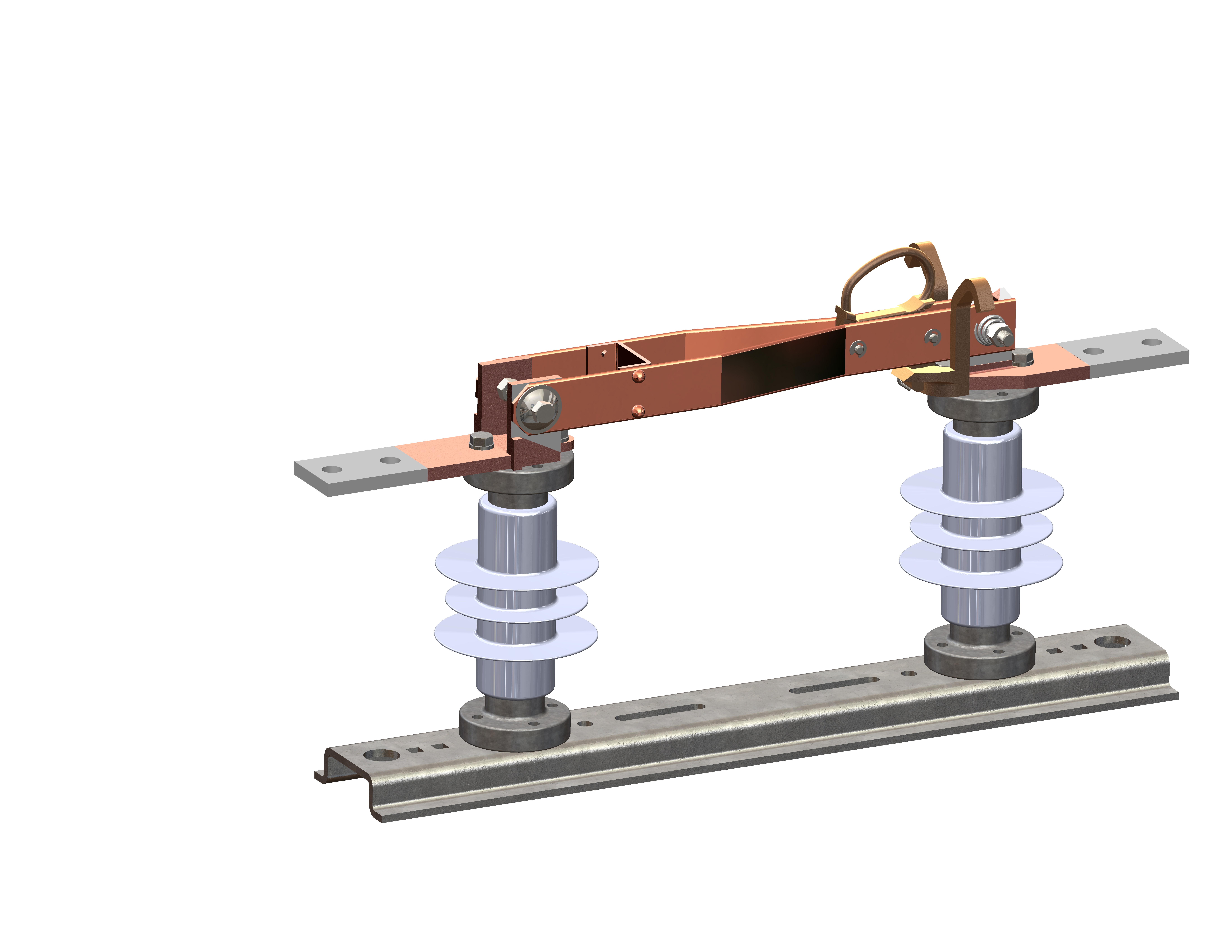

BLT Truss Blade
Previous Product:
Product Image
Bypass XT


Note: Images may not fully reflect actual part
