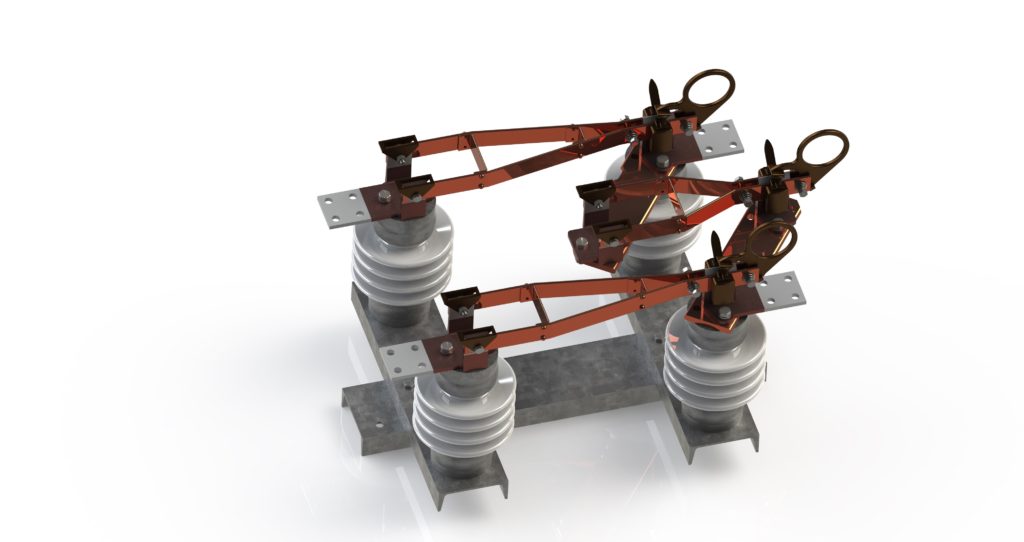

Bypass BTBP

Download Catalog PDF

FEATURES

-Truss-type blade for extra strength.
-Wide, sturdy blade guide.
-Large pull ring – easy to hook.
-Sturdy blade pryout opens switch easily.
-Tongue-type contact provides double contact
surfaces.
-All contact surfaces are silver plated.
-All current carrying parts are hard-drawn
copper, cast copper, or high conductivity
bronze.
-Available in single, tandem, and low-profile
styles.
-Ratings for 7.5kV to 161kV – from 600 to
2000 amperes (4000 amps through 34.5kV).
-Switches rated 1200 and 2000 amperes are
available with either 30°C or 53°C maximum
temperature rise design.
-600 ampere rated switches are available with
the heavier 30°C rise design only.
-Wood crate packaging.

Category:
Substation Hookstick Switches
Sub-Category:
Type BT
Switch Style:
Bypass BTBP
Voltage:
7.5 - 34kV
Current:
600 - 2000A
BIL:
95-200kV
Next Product:
Product Image
Standard XT
Previous Product:
Product Image
Low Profile BT


Note: Images may not fully reflect actual part
