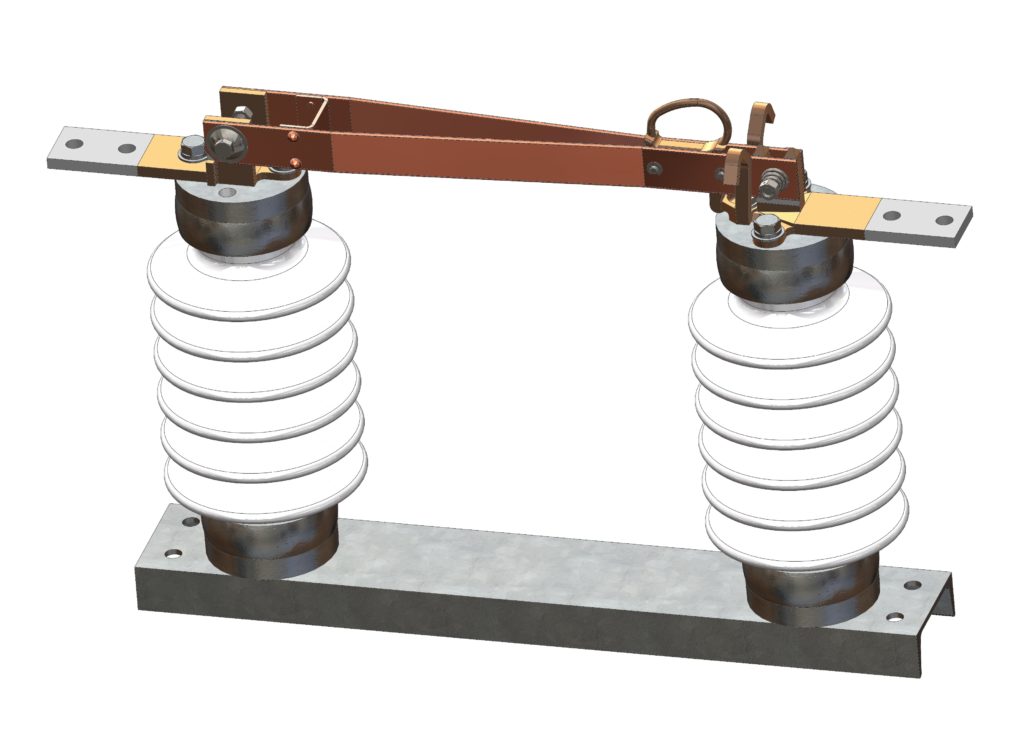

BLT - 3

Download Catalog PDF

The BLT-3 has the same features and options as the BLT-Truss blade but with the added robustness of station class insulators. Custom bases available to meet user specifications. Contact surfaces are silver plated and all current carrying parts are of hard-drawn copper, cast copper, or high conductivity bronze. The truss type, harddrawn copper blades straddle the contact tongue providing two contact surfaces.


-8.3KV through 38KV
-600A & 900A Continuous Current
-Furnished with hooks for loadbreak tool
-REA/RUS approved
-Compact design for crossarm or pole top mounting.
-Simple, sure latch mechanism.
-Double-tongue latch contact for extra contact surface.
-Operable with portable loadbreak tool.
-All contacts silver plated.
-All live parts of hard-drawn copper, cast copper, or high-conductivity bronze.
-Extensive terminal options

Substation Hookstick Switches
Switch Style:
BLT - 3
7.5 - 34.5kV
